Input Shaft Seal, Replacing, Clutch Cover: Installing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

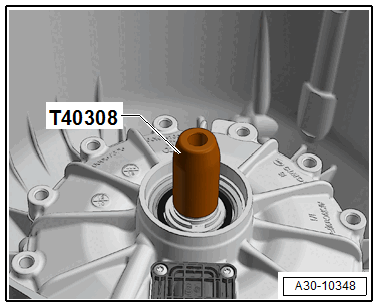

-- Place the Assembly Sleeve:T40308 on the drive axle.

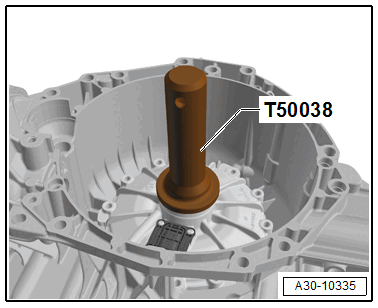

-- Drive in the new seal with the Thrust Piece:T50038 in the clutch housing until it stops.
-- Remove the Assembly Sleeve:T40308 .
-- Install the flywheel. Refer to FLYWHEEL, REMOVING AND INSTALLING .
