Coolant Change-Over Valve 2 -N633-, REMOVING AND INSTALLING, AUDI Q5: Removing
WARNING: This page is about a different car, the 2024 Audi Q5 and 2023 Audi Q5. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the right front wheel spoiler. Refer to OVERVIEW - FRONT WHEEL HOUSING LINER .
-- If installed, remove the Engine Sound Generator Actuator 1 -R257-. Refer to Engine Sound Generator Actuator 1 -R257-, REMOVING AND INSTALLING, AUDI Q5 .

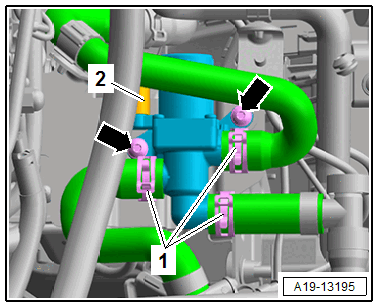

-- Disconnect the connector -2-.
-- Clamp off the coolant hoses using the Hose Clamps - Up To 25mm:3094 .
CAUTION:
Collecting coolant and determining volumes.
-- Place the Shop Crane - Drip Tray:VAS 6208 underneath.
-- Loosen the hose clamps -1- and remove the coolant hoses.
-- Remove the bolts -arrows- to do so counterhold if necessary.
-- Remove the Coolant Change-Over Valve 2 -N633-.
