Coolant Change-Over Valve 1 -N632-, REMOVING AND INSTALLING, AUDI Q5: Removing

WARNING: This page is about a different car, the 2024 Audi Q5 and 2023 Audi Q5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of AUDI OF AMERICA, LLC

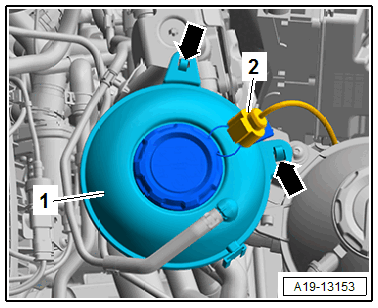

-- Disconnect the connector -2-.

-- Release the catches -arrows- and remove the coolant expansion tank -1- and move to the side.

-- Remove the noise insulation. Refer to OVERVIEW - NOISE INSULATION .

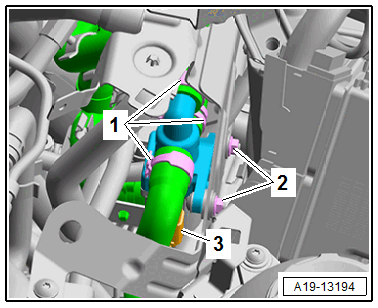

-- Disconnect the connector -3-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the nuts -2- to do so counterhold if necessary.

CAUTION:

Collecting coolant and determining volumes.

-- Place the Shop Crane - Drip Tray:VAS 6208 underneath.

-- Clamp off the coolant hoses using the Hose Clamps - Up To 25mm:3094 .

-- Loosen the hose clamps -1- and remove the coolant hoses.

-- Remove the Coolant Change-Over Valve 1 -N632-.
