Right Coolant Pipe, Removing And Installing, Vehicles With Secondary Air System: Removing

WARNING: This page is about a different car, the 2024 Audi Q5 and 2023 Audi Q5. However, it is still accessible from the selected car via links, so may be relevant.

During installation, all heat shield boots must be installed at the same location.

-- Remove the turbocharger. Refer to TURBOCHARGER, REMOVING AND INSTALLING .

-- Remove the bolts -arrows- and move the secondary air injection pipe -3- to the side.

Courtesy of AUDI OF AMERICA, LLC

Version 1:

Courtesy of AUDI OF AMERICA, LLC

-- Fold back the heat shield boot.

-- Loosen the hose clamps -2 and 3- and remove the coolant hoses.

-- Remove the bolts -arrows- and -1-, disconnect the right coolant pipe from the cylinder block and remove it.

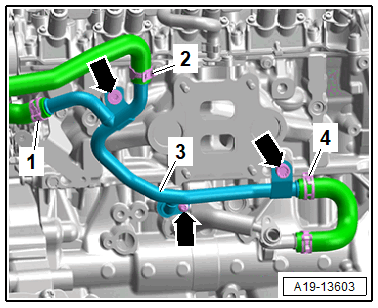

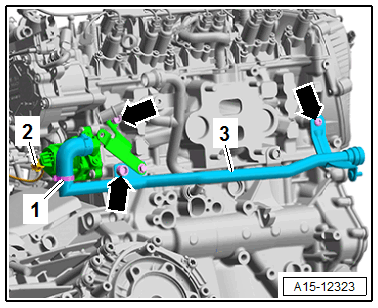

Version 2:

Courtesy of AUDI OF AMERICA, LLC

-- Open the heat shield boot.

-- Loosen the hose clamps -1, 2 and 4- and remove the coolant hoses.

-- Remove the bolts -arrows-, disconnect the coolant pipe -3- from the cylinder block and remove it.
