Valve Timing, Checking

Special tools and workshop equipment required

• Spark Plug Removal Tool:3122 B
  Fig 1: Identifying Spark Plug Removal Tool 3122B

  Courtesy of AUDI OF AMERICA, LLC
• Dial Indicator Set:VAS 6341
  Fig 2: Identifying Dial Gauge Set VAS 6341

  Courtesy of AUDI OF AMERICA, LLC
• Dial Gauge Adapter:T10170 A
  Fig 3: Dial Gauge Adapter T10170A

  Courtesy of AUDI OF AMERICA, LLC
• Wrench - 21mm:T40263
  Fig 4: Identifying Wrench - 21mm

  Courtesy of AUDI OF AMERICA, LLC
• Adapter:T40314
  Fig 5: Adapter T40314

  Courtesy of AUDI OF AMERICA, LLC

Procedure

-- Remove the upper timing chain cover. Refer to UPPER TIMING CHAIN COVER, REMOVING AND INSTALLING .

-- Remove the cylinder ignition coil "1". Refer to IGNITION COIL, REMOVING AND INSTALLING .

Courtesy of AUDI OF AMERICA, LLC

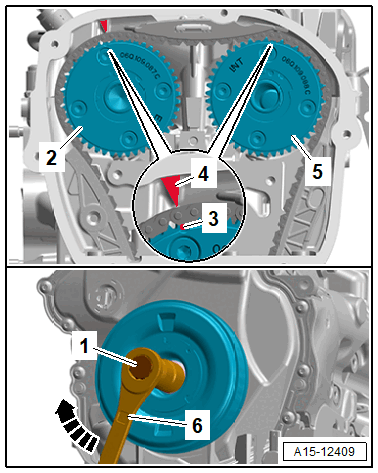

-- Vibration damper version 1 Refer to Figure: Turn the vibration damper crankshaft using the Wrench - 21mm:T40263  -item 6-, Adapter:T40314  -item 1- and the 24mm socket -arrow-, until the markings -3 and 4- align.

Fig 6: Vibration Damper - Versions

Courtesy of AUDI OF AMERICA, LLC

-- Vibration damper, version 2. Refer to Figure: use an offset open-end wrench - 24 mm to turn the crankshaft at the vibration damper so far -arrow-, until the markings -3 and 4- almost face each other.

Fig 7: Vibration Damper - Versions

Courtesy of AUDI OF AMERICA, LLC

-- Removing the spark plug from cylinder 1 with the Spark Plug Removal Tool:3122B  .

Courtesy of AUDI OF AMERICA, LLC

-- Install the Dial Gauge Adapter:T10170/A  all the way into the spark plug thread.

Fig 8: Identifying Adapter For Dial Gauge

Courtesy of AUDI OF AMERICA, LLC

-- Insert the Dial Gauge Set:VAS 6341  with the Dial Gauge Adapter Extending Piece:T10170A/1  all the way and secure it with the locking nut -arrow-.

-- Turn the crankshaft slowly in the direction of the engine rotation -arrow- until the maximum dial reading is reached. When the maximum dial reading is reached (turning point of the meter) position the piston at "TDC".

Courtesy of AUDI OF AMERICA, LLC

• The mark -3- from the camshaft chain sprockets -2 and 5- and the mark -4- on the cylinder head cover must align.

TIP:

If the crankshaft was turned past "TDC", turn the crankshaft two more turns in the direction of engine rotation. Do not turn the engine in the opposite direction of the engine rotation.

• If there is an offset of a tooth, the timing chain must be refitted.

-- Install the spark plug. Refer to OVERVIEW - IGNITION SYSTEM .

-- Install the ignition coil. Refer to IGNITION COIL, REMOVING AND INSTALLING .
