Lane Change Assistance Control Module -J769- /Lane Change Assistance Control Module 2 -J770-, REMOVING AND INSTALLING: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Vehicles with TDI engine - engine, right side of vehicle: remove the rear bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

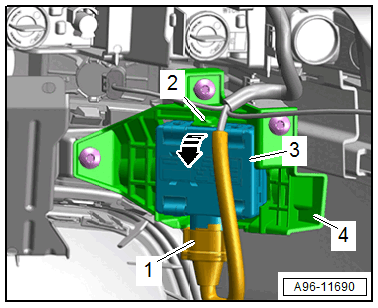

-- Release the retainer -2- and tilt the control module -3- out in the direction of -arrow-.
-- Disengage and remove the control module from the lower mount -4-.
-- Disconnect the connector -1-.
