Storage Compartment Lamp, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

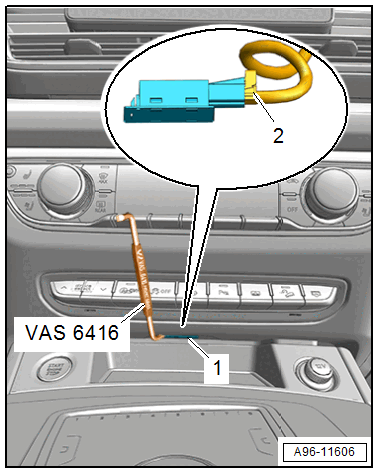

GWWA96-11606Courtesy of AUDI OF AMERICA, LLC

-- Pry the lamp -1- out of the mount using the Angled Screwdriver:VAS 6416  .

-- Disconnect the connector -2-.
