Front Exit Warning Lamp, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the front door trim panel. Refer to FRONT DOOR TRIM PANEL, REMOVING AND INSTALLING .

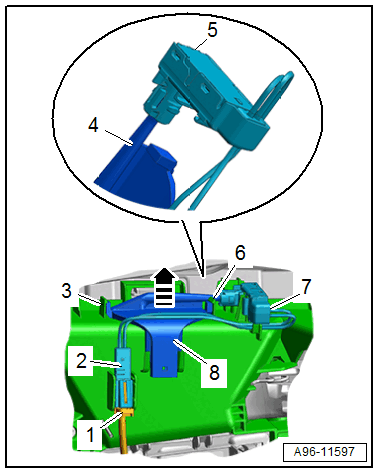

-- Disconnect the connector -1- and free up the connector -2-.
-- Release the catches -3 and 6-.
-- Push the interior door handle illumination fiber-optic cable -8- upward and out of the mount in the direction of -arrow-. Doing so will detach the exit warning lamp -7- from the mount.
-- Release the retainers and remove the lamp -5- from the fiber-optic cable -4-.
