Driver Assistance Systems Front Camera, Replacing: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the interior rearview mirror. Refer to INTERIOR REARVIEW MIRROR, REMOVING AND INSTALLING .
-- Remove the front interior lamp/reading lamp. Refer to FRONT INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .
-- Remove the sun visor center support. Refer to SUN VISOR CENTER SUPPORT, REMOVING AND INSTALLING .
-- Disconnect the connector.

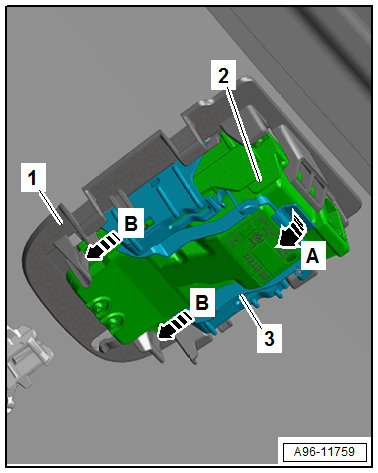

-- Release the securing clip -3- and pivot it downward in the direction of -arrow A-.
-- Wait one minute so that the silicone pad can be removed without leaving any residue.
-- Release the catches in the direction of -B arrows-.
-- Remove the driver assistance systems front camera -2- from the mount -1-.
-- Clean the adhesive surface on the windshield with Cleaning Solution:D 009 401 04 .
- Any silicone residue must be completely removed.
