Driver Assistance Systems Front Camera, Replacing: Installing

Courtesy of AUDI OF AMERICA, LLC

Install in the reverse order of removal while noting the following:

• The camera field of vision on the inside of the windshield must not be fogged up or dirty.

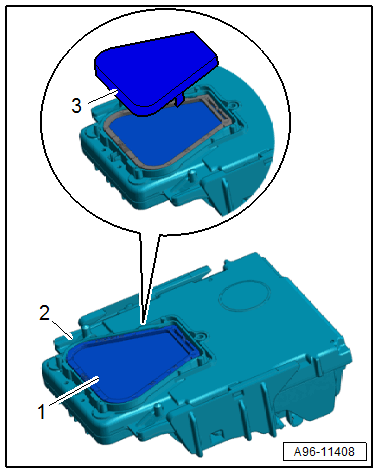

-- Release the catch and remove the protective cap -3- from the front camera -2-.

TIP:

To avoid contaminating the silicone pad, remove the protective cap just before installing it.

-- Connect the connector.

Courtesy of AUDI OF AMERICA, LLC

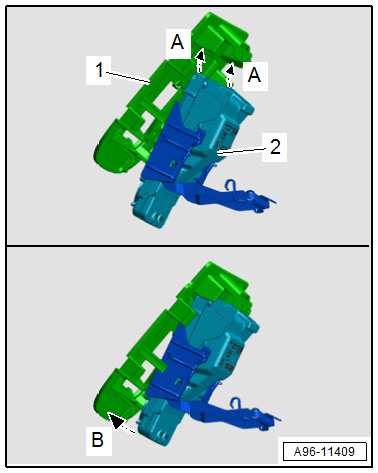

-- Insert the front camera -2- in the retaining plate -1- in the direction of -A arrows-.

-- Push the front camera using light force onto the retaining plate in the direction of -arrow B-.

TIP:

If not all bubbles are removed then pressing on the silicone pad, the bubbles will be pushed out on the windshield when locking the front camera due to contact pressure. The silicone pad is designed so that any air pockets will be diffused by the silicone pad.

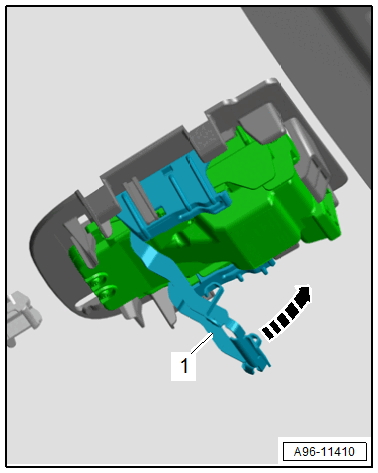

-- Press the front camera against the windshield and close the securing clip -1- in the direction of the -arrow-.

-- Make sure that all four sides engage with the retaining plate.

Courtesy of AUDI OF AMERICA, LLC

• To prevent malfunctions in the assistance systems, the driver assistance systems front camera must not have any embedded objects or bubbles between it and the windshield.

-- Calibrate the driver assistance systems front camera. Refer to DRIVER ASSISTANCE SYSTEMS FRONT CAMERA, CALIBRATING .

-- Adjust and calibrate the matrix LED headlamp. Refer to MATRIX LED HEADLAMP, ADJUSTING/CALIBRATING .
