Power Window Control Head in Driver Door -E512-, REMOVING AND INSTALLING: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the front pull handle. Refer to FRONT PULL HANDLE, REMOVING AND INSTALLING .

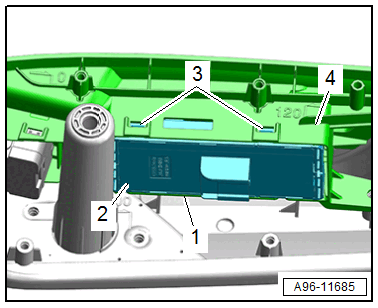

-- Release the retainers -3- and disengage the tab -1-.
-- Remove the power window switch -2- from the mount -4-.
