Electromechanical Parking Brake Button -E538- /-Auto Hold- Button -E540-, REMOVING AND INSTALLING: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the center console insert trim. Refer to CENTER CONSOLE INSERT, REMOVING AND INSTALLING .

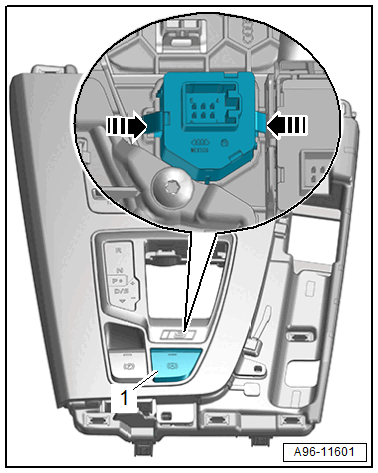

Electromechanical Parking Brake Button -E538- :
-- Carefully release the retainers using a small screwdriver in the direction of -arrows-.
-- Press the button -1- out of the selector lever transmission range display -2-.

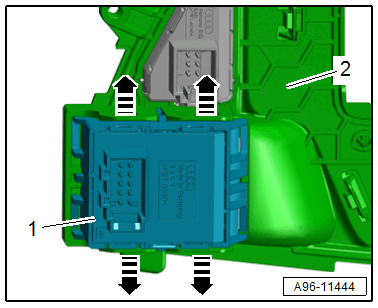

-Auto Hold- Button -E540- :
-- Release the retainers in the direction of -arrows-.
-- Remove the button -1- from the mount.
