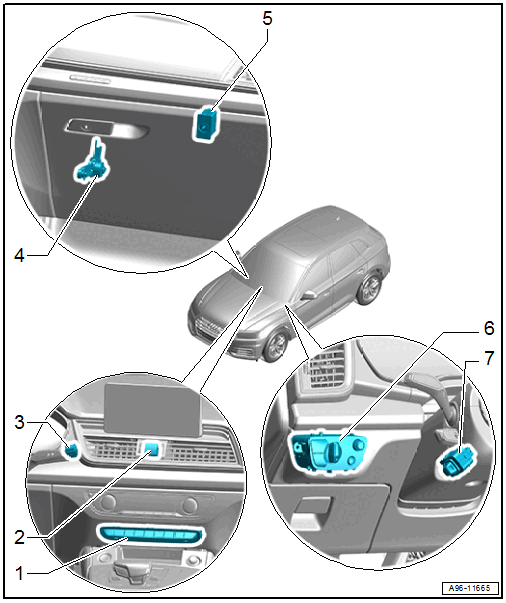

Component Location Overview - Instrument Panel Controls
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Switch Module in Instrument Panel, Center -EX22-
- With the following integrated components:
- ASR/ESP Button -E256-
- Parking Aid Button -E266-
- Front Display Open/Close Button -E462-
- Parallel Parking Assistance Button -E581-
- Driving Profile Selection Button with Driving Profile Selection Button -E735- /Driving Profile Selection Button 2 -E797-
- Start/Stop Mode Button -E693-
- The components cannot be replaced separately if faulty.
- Removing and Installing. Refer to BUTTONS IN INSTRUMENT PANEL, REMOVING AND INSTALLING .
- With the following integrated components:
- Emergency Flasher Button -E229-
- Removing and Installing. Refer to Emergency Flasher Button -E229-, REMOVING AND INSTALLING .
- Instrument Cluster Operation Button -E493-
- RHD: is a mirror image
- Removing and Installing. Refer to BUTTONS IN INSTRUMENT PANEL, REMOVING AND INSTALLING, Instrument Cluster Operation Button -E493- .
- Glove Compartment Lamp Switch -E26-
- RHD: is a mirror image
- Removing and Installing. Refer to Glove Compartment Lamp Switch -E26-, REMOVING AND INSTALLING .
- Front Passenger Airbag Deactivation Key Switch -E224-
- RHD: is a mirror image
- Overview. Refer to OVERVIEW - FRONT PASSENGER AIRBAG .
- Light Switch -E1-
- RHD: is a mirror image
- With instrument panel and switch illumination dimmer switch, rear fog lamp button
- Removing and Installing. Refer to Light Switch -E1-, REMOVING AND INSTALLING .
- Steering Column Adjustment Switch -E167-
- RHD: is a mirror image
- Removing and Installing. Refer to Steering Column Adjustment Switch -E167-, REMOVING AND INSTALLING .

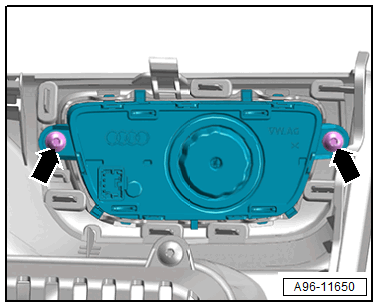

Light SwitchE1 Tightening Specification
-- Tighten the bolts -arrows- to 1.5 Nm.
