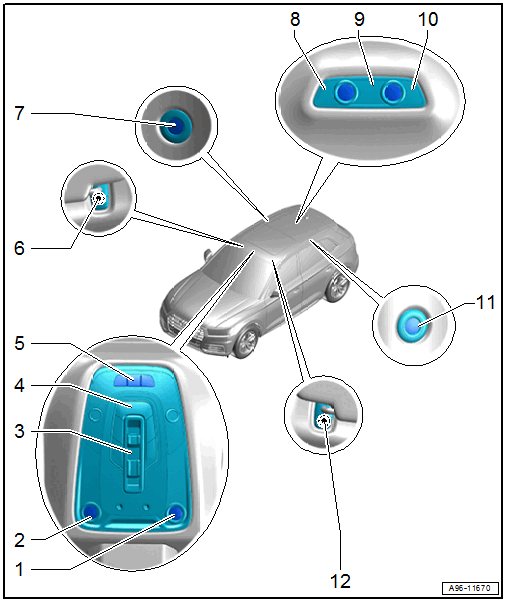

Component Location Overview - Controls In Roof Trim Panel
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Front Passenger Reading Lamp Button -E458-
- RHD: is a mirror image
- Integrated in the front roof module
- Driver Reading Lamp Button -E457-
- RHD: is a mirror image
- Integrated in the front roof module
- Sunroof Button -E325- with Roof Shade Button 1 -E584-
- Overview. Refer to OVERVIEW - CONTROLS IN ROOF TRIM PANEL .
- Front Roof Module -WX3-
- Overview. Refer to OVERVIEW - CONTROLS IN ROOF TRIM PANEL .
- Removing and Installing. Refer to FRONT INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .
- Garage Door Opener Control Head -E284-
- Overview. Refer to OVERVIEW - CONTROLS IN ROOF TRIM PANEL .
- Front Passenger Vanity Mirror Lamp Contact Switch -F148-
- RHD: is a mirror image
- Integrated in the sun visor pivot bearing. Cannot be replaced separately if faulty.
- Sun Visor, Replacing. Refer to SUN VISOR, REMOVING AND INSTALLING .
- Rear Interior Lamp
- For versions with panorama sliding sunroof
- With Right Rear Reading Lamp Switch -E455-
- Removing and Installing. Refer to REAR INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING, VEHICLES WITH PANORAMA SLIDING SUNROOF .
- Right Rear Reading Lamp Switch -E455-
- Rear Interior Lamp
- For versions without panorama sliding sunroof
- Removing and Installing. Refer to REAR INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .
- Left Rear Reading Lamp Switch -E454-
- Rear Interior Lamp
- For versions with panorama sliding sunroof
- With Left Rear Reading Lamp Switch -E454-
- Removing and Installing. Refer to REAR INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING, VEHICLES WITH PANORAMA SLIDING SUNROOF .
- Driver Vanity Mirror Lamp Contact Switch -F147-
- RHD: is a mirror image
- Integrated in the sun visor pivot bearing. Cannot be replaced separately if faulty.
- Sun Visor, Replacing. Refer to SUN VISOR, REMOVING AND INSTALLING .
