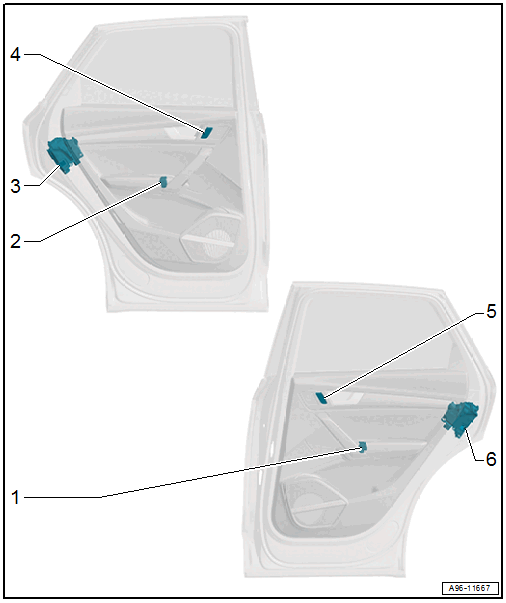

Component Location Overview - Controls In Rear Doors
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Passenger Side Rear Power Window Button -E713-
- RHD: is a mirror image
- Removing and Installing. Refer to REAR WINDOW REGULATOR BUTTON IN REAR DOOR, REMOVING AND INSTALLING .
- Driver Side Rear Power Window Button -E711-
- RHD: is a mirror image
- Removing and Installing. Refer to REAR WINDOW REGULATOR BUTTON IN REAR DOOR, REMOVING AND INSTALLING .
- Driver Side Rear Door Contact Switch -F505-
- RHD: is a mirror image
- Integrated in the door lock. Cannot be replaced separately if faulty.
- Replace the door lock. Refer to DOOR LOCK, REMOVING AND INSTALLING .
- Driver Side Rear Interior Locking Button -E717-
- RHD: is a mirror image
- Equipped on some models
- Removing and Installing. Refer to Driver Side Rear Interior Locking Button -E717- /Passenger Side Rear Interior Locking Button -E718-, REMOVING AND INSTALLING .
- Passenger Side Rear Interior Locking Button -E718-
- RHD: is a mirror image
- Equipped on some models
- Removing and Installing. Refer to Driver Side Rear Interior Locking Button -E717- /Passenger Side Rear Interior Locking Button -E718-, REMOVING AND INSTALLING .
- Passenger Side Rear Door Contact Switch -F506-
- RHD: is a mirror image
- Integrated in the door lock. Cannot be replaced separately if faulty.
- Replace the door lock. Refer to DOOR LOCK, REMOVING AND INSTALLING .
