Overview - Windshield Projection (Head-Up Display)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

The overview shows a LHD vehicle as an example. For RHD vehicles the layout is a mirror image.

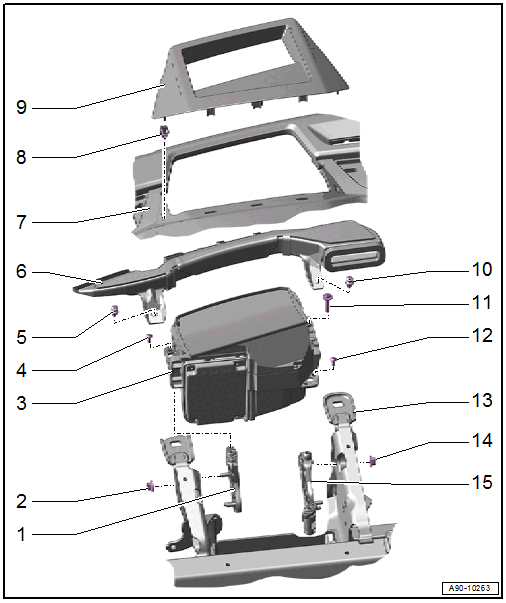

Fig 1: Exploded View Of Windshield Projection (Head-Up Display)

Courtesy of AUDI

Exterior Bracket
- For the windshield projection control module
- Removing and Installing. Refer to OUTER BRACKET, REMOVING AND INSTALLING .
Nut
- Quantity: 3
- 8 Nm
Windshield Projection Head Up Display Control Module -J898-
- Removing and Installing. Refer to WINDSHIELD PROJECTION HEAD UP DISPLAY CONTROL MODULE, REMOVING AND INSTALLING .
- Calibrating. Refer to WINDSHIELD PROJECTION HEAD UP DISPLAY CONTROL MODULE, CALIBRATING .
Bolt
- Replace after removing
- Quantity: 2
- Tightening sequence. Refer to Fig 2.
Expanding Rivet
- For air duct channel
Air Duct
- For the windshield projection control module
Instrument Panel
Clip
Upper Cover
- Removing and Installing. Refer to WINDSHIELD PROJECTION HEAD UP DISPLAY CONTROL MODULE, REMOVING AND INSTALLING .
Expanding Rivet
- For air duct channel
Bolt
- Tightening Specifications and Sequence. Refer to Fig 2.
Bolt
- Replace after removing
- Quantity: 2
- Tightening Specifications and Sequence. Refer to Fig 2.
Central Tube
Nut
- Quantity: 3
- 8 Nm
Interior Bracket
- For the windshield projection control module
- Removing and Installing. Refer to INNER BRACKET, REMOVING AND INSTALLING .

Windshield Projection Head Up Display Control Module - Tightening Specification and Sequence

Fig 2: Windshield Projection Head Up Display Control Module

Courtesy of AUDI

-- Tighten the bolts in the sequence shown.

Bolts	Tightening Specification
-1-	5.5 Nm
-2 and 3-	4 Nm
