INSTRUMENT CLUSTER WITH Instrument Cluster Control Module -J285-, REMOVING AND INSTALLING, WITH DRIVER INFORMATION SYSTEM: Removing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

-- Move the steering wheel as far to the rear and down as possible. Use the full steering column adjustment range for this.

-- Switch off the ignition and place the ignition key outside of the vehicle.

-- Remove the driver side instrument panel vent. Refer to OUTER INSTRUMENT PANEL VENT, REMOVING AND INSTALLING .

-- Remove the center and front passenger side instrument panel vent. Refer to CENTER VENT, REMOVING AND INSTALLING .

-- Remove the bolts -2-.

Courtesy of AUDI

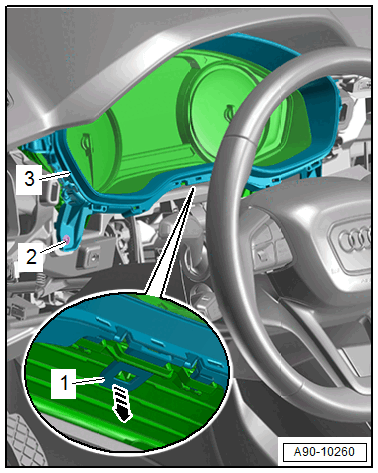

-- Remove the instrument cluster trim -3- by releasing the catch -1- in the direction of -arrow-.

-- Remove the bolts -1 and 4-.

Courtesy of AUDI

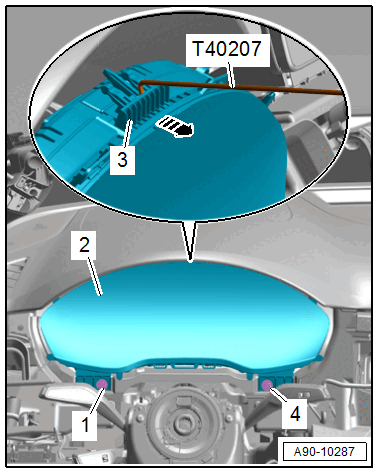

-- Guide the Hook Tool:T40207 between the instrument panel and instrument cluster and attach it in the center as shown -3-.

-- Using the Hook Tool:T40207 , remove the instrument cluster -2- from the retainer in the direction of -arrow- and tilt toward the rear.

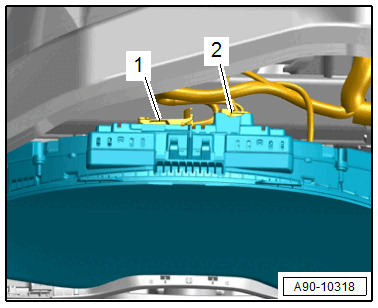

-- Disconnect the connector -1-.

Courtesy of AUDI

-- Equipped on some models: disconnect the connector -2- for the fiber-optic cable.

-- Seal the open wiring harness connector -2- of the fiber-optic cable with the Fiber-Optic Repair Set - Connector Protective Caps: VAS 6223/9 -item 1-.

Fig 1: Fiber-Optic Cable Harness Connector And Protective Cap For Cable Connector VAS 6223/9

Courtesy of AUDI

TIP:

The protective cap prevents soiling and damage to fiber optic face, which would impair light transfer.

-- Remove the instrument cluster on the front passenger side between the steering wheel and the instrument panel.
