Right LED Headlamp Power Output Module 1 -A27- /Left LED Headlamp Power Output Module 1 -A31-, REMOVING AND INSTALLING: Removing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

Vehicles with 6-Cylinder Engine:

CAUTION:

The cooling system is under pressure when the engine is warm. There is a risk of scalding due to hot steam and hot coolant.

Scalding the skin and other parts of the body is possible.

- Wear safety gloves.

- Wear protective eyewear.

- Reduce the pressure by covering the coolant expansion tank cap with a cloth and carefully opening it.

-- Open the coolant expansion tank cap -1- by releasing the catch in the direction of -arrow-.

Fig 1: Coolant Expansion Tank

Courtesy of AUDI

-- Disconnect the connector -1-.

Courtesy of AUDI

-- Pry up the clamp -4- and remove the coolant line.

-- Remove the bolts -2 and 3-.

-- Release the catch in the direction of -arrow- and tie up the coolant expansion tank to the left side.

Continuation for all:

-- Right side of the vehicle: Remove the air filter housing. Refer to AIR FILTER HOUSING, REMOVING AND INSTALLING - 2.0L DMSA , AIR FILTER HOUSING, REMOVING AND INSTALLING - 2.0L DPVA , AIR FILTER HOUSING, REMOVING AND INSTALLING - 3.0L .

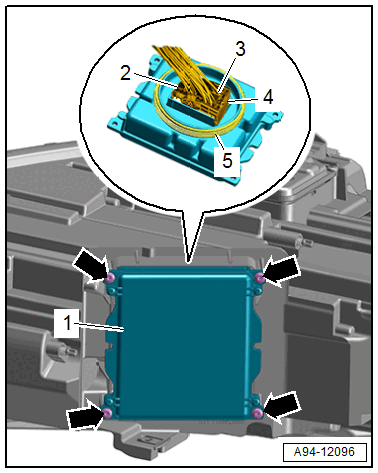

-- Remove the bolts (depending on the version: 3 or 4) -arrows-.

Courtesy of AUDI

-- Remove the power output module -1-.

-- Disconnect the connector -2-.

-- To disconnect push the connector tab -3-, pivot the retaining bracket -4- upward and remove the connector.
