Left Light Control Module -J1018- /Right Light Control Module -J1023-, REMOVING AND INSTALLING: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Equipment versions with parking heater or SQ5 TDI: remove the front wheel housing liner. Refer to FRONT WHEEL HOUSING LINER, REMOVING AND INSTALLING .
-- Remove the front wheel spoiler. Refer to OVERVIEW - FRONT WHEEL HOUSING LINER .
-- Versions with auxiliary radiator except SQ5 TDI: remove the auxiliary radiator and move it aside with the coolant hoses attached. Refer to AUXILIARY RADIATOR, REMOVING AND INSTALLING - 2.0L , or AUXILIARY RADIATOR, REMOVING AND INSTALLING - 3.0L .

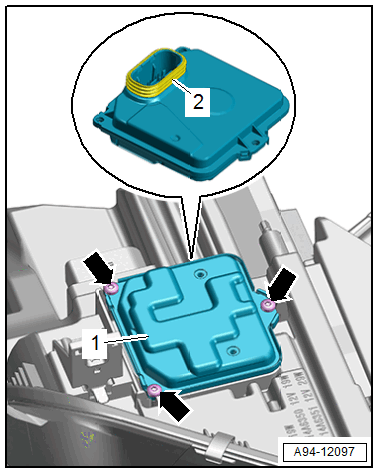

-- Remove the bolts -arrows-.
-- Remove the power output module -1-.
