Left Daytime Running Lamp and Position Lamp LED Module -L176- /Right Daytime Running Lamp and Position Lamp LED Module -L177-, REMOVING AND INSTALLING, HID HEADLAMP: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the headlamp. Refer to HEADLAMP, REMOVING AND INSTALLING .

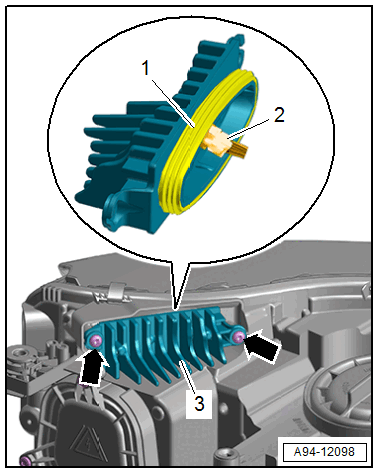

-- Remove the bolts -arrows-.
-- Remove the LED module -3- from the headlamp housing.
-- Press the release button and disconnect the connector -2-.
