Component Location Overview - Access/Start Authorization System

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

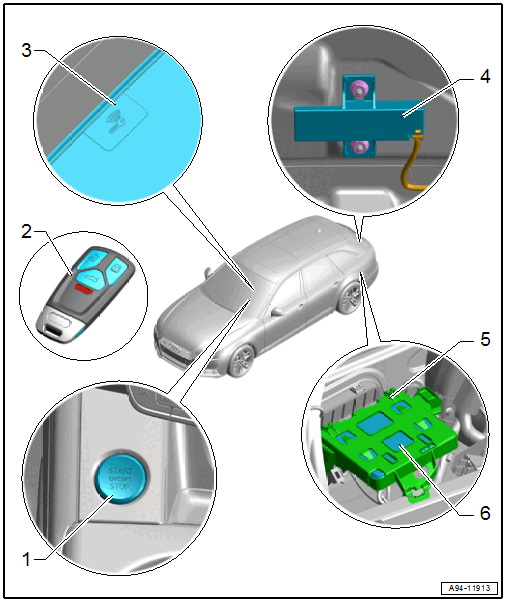

Fig 1: Component Location For Access/Start Authorization System

Courtesy of AUDI

Access/Start Authorization Button -E408-
- Removing and Installing. Refer to Access/Start Authorization Button -E408-, REMOVING AND INSTALLING .
Ignition Key
Access/Start System Antenna 1 in Vehicle Interior -R138-
- With emergency transponder sensor
- Component Location Overview. Refer to COMPONENT LOCATION OVERVIEW - KEYLESS ACCESS AUTHORIZATION SYSTEM .
Access/Start System Antenna In Luggage Compartment -R137-
- Component Location Overview. Refer to COMPONENT LOCATION OVERVIEW - KEYLESS ACCESS AUTHORIZATION SYSTEM .
Mount
- For the comfort system central control module
Comfort System Central Control Module -J393-
- Removing and Installing. Refer to COMFORT SYSTEM CENTRAL CONTROL MODULE -J393-, REMOVING AND INSTALLING .
