Component Location Overview - Alcohol Interlock System Interface
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

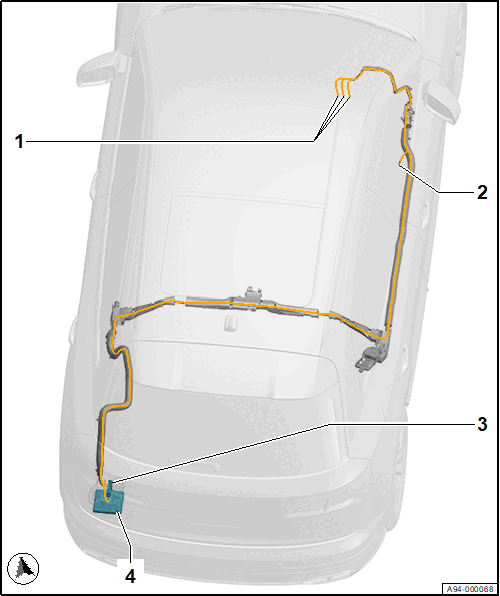

LHD Vehicle
- Coupling Point for Alcohol Interlock System
- In the glove compartment
- Refer to the appropriate Service Information. .
- Refer to the appropriate Service Information. .
- Refer to the appropriate Service Information. .
- Connecting and securing according to the manufacturer information
- Ground Connection in Right Footwell
- Relay and Fuse Panel 2 -SR2-
- On the left side of the luggage compartment
- Refer to COMPONENT LOCATION OVERVIEW - RELAY PANELS, FUSE PANELS AND E-BOXES .
- Comfort System Central Control Module -J393-
- With alcohol interlock system interface
- Refer to COMFORT SYSTEM CENTRAL CONTROL MODULE -J393-, REMOVING AND INSTALLING .

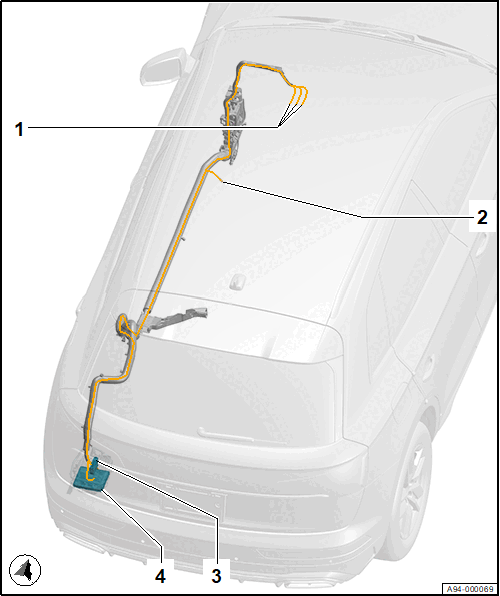

RHD Vehicles
- Coupling Point for Alcohol Interlock System
- In the glove compartment
- Refer to the appropriate Service Information. .
- Refer to the appropriate Service Information. .
- Refer to the appropriate Service Information. .
- Connecting and securing according to the manufacturer information
- Ground Connection in Left Footwell
- Relay and Fuse Panel 2 -SR2-
- On the left side of the luggage compartment
- Refer to COMPONENT LOCATION OVERVIEW - RELAY PANELS, FUSE PANELS AND E-BOXES .
- Comfort System Central Control Module -J393-
- With alcohol interlock system interface
- Refer to COMFORT SYSTEM CENTRAL CONTROL MODULE -J393-, REMOVING AND INSTALLING .
- Coupling Point for Alcohol Interlock System
- Positive cable terminal 30
- Ground wire terminal 31
- LIN bus wire
- Control Module
- With alcohol interlock system interface (LIN bus wire)
- Ground Connection
- Ground wire terminal 31 for alcohol interlock system
- Fuse Panel
- Positive cable terminal 30 for alcohol interlock system
