Exhaust System, Installing Without Tension
WARNING: This page is about a different car, the 2022 Audi Q8, 2021 Audi Q8, 2020 Audi Q8, and 2019 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
Procedure
- Align the exhaust system when cold.
-- Loosen the clamping sleeve nuts -arrows-.

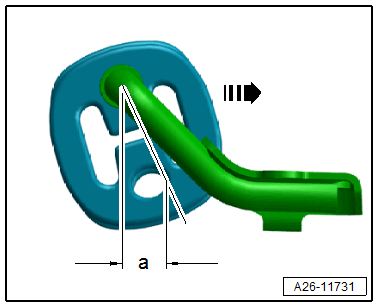

-- Push the exhaust system far enough forward in direction of -arrow- until the pretension on the retaining loop at the exhaust pipe is -a- = 10 ± 2 mm.
-- Position the rear clamping sleeve (refer to Figure) and tighten the threaded connections evenly.
Tightening Specifications
- Refer to OVERVIEW - MUFFLER
