Tire Wear, Center

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

This wear pattern is found on drive wheels on high-powered vehicles that often drive long stretches at high speed.

At high speeds, the centrifugal force increases the tire diameter at the center of the tread more than at the shoulders of the tire. The drive forces from the center area of the tread are transferred to the road surface. This is reflected in the wear pattern.

These effects can appear especially extreme on wide tires.

Reducing the Tire Pressure Is Not an Effective Remedy for This Wear Pattern.

NOTE:

For safety reasons, tire pressure must never be lowered below specified pressure under any circumstances.

A largely even wear pattern can be achieved if tires are changed in a timely manner from the driven to the non-driven axle.

Increased Tread Wear

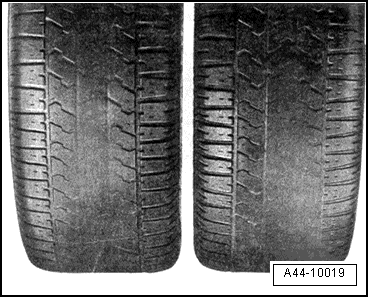

Fig 1: Identifying Center Tire Wear Condition
GWWA44-10019Courtesy of AUDI

Typical wear pattern of tires on the driven axle of high-powered vehicles.

The increased wear at the tread center is caused by stresses related to the centrifugal force of the tire and the transmission of traction forces.
