Tests And Test Requirements
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
The following checks will be helpful when fault finding if there are complaints regarding the brake booster or the so-called >>hard brake pedal<<.
The following components are included in the check:
- Brake Booster
- Gasket between the brake master cylinder and the brake booster
- Check Valve
- Vacuum lines with connectors
- Vacuum pump (if equipped)
TIP:
Keep the geographical surrounding in mind when evaluating the measurement results. The higher above sea level, the lower the air pressure.
Note the test requirements:
- Visually inspect all of the vacuum lines for damage (for example, tears or damage caused by animals) and secure fit
- Clean the engine compartment before starting work, if necessary
- Maintain clean working conditions when working on the vacuum system
Special tools and workshop equipment required

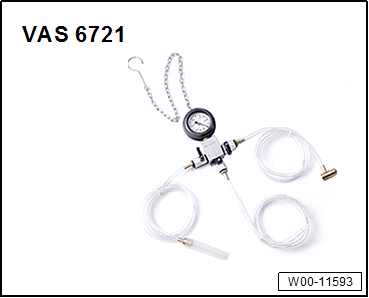

- Brake Servo Tester:VAS 6721
