Vacuum Pump, Removing And Installing, 3.0L TFSI Engine: Installing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
Install in the reverse order of removal while noting the following:
- Replace the seal after removal.
- Check the vacuum lines for damage before assembling and replace if necessary.
- Secure all hose connections with hose clamps that match the ones used in series production. Refer to the appropriate Electronic Parts Information.

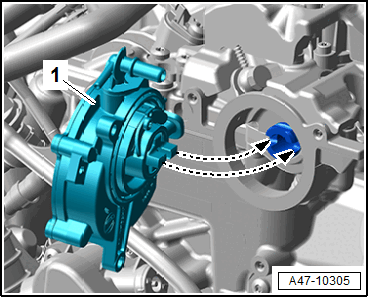

-- Position the vacuum pump driver -1- so it engages in the symmetrical groove on the camshaft when positioning in direction of -arrows-.
-- Install the vacuum line with the hose clamp -1- connected.
-- Install the lower air duct pipe. Refer to AIR DUCT PIPE, REMOVING AND INSTALLING .
