Check Valve, Removing And Installing, With Vacuum Line In Plenum Chamber: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the left tower brace. Refer to TOWER BRACE, REMOVING AND INSTALLING .

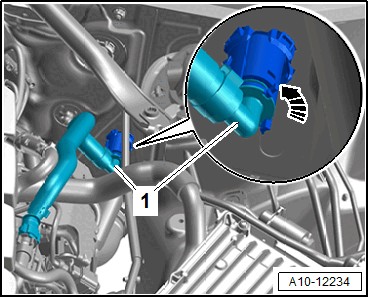

-- Release the retainer in direction of -arrow- and remove the vacuum hose -1-.
-- Disconnect the connector -2- for the Vacuum Sensor -G608-.
-- Carefully remove the vacuum line -3- from the plenum chamber bulkhead -4- by releasing the retainers.
-- Carefully remove the vacuum line -3- from the brake booster -1-.
