Brake Caliper Piston, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Brake caliper removed and separated from the hydraulic system. Refer to BRAKE CALIPER, REPLACING .
- The parking brake motor is removed. Refer to LEFT AND RIGHT PARKING BRAKE MOTOR -V282- / -V283-, REMOVING AND INSTALLING .
-- Turn the spindle with a XZN 9 Socket -item A- in the direction of -arrow a-. This allows the thrust nut to push the brake caliper piston -3- out of the brake caliper -1-.

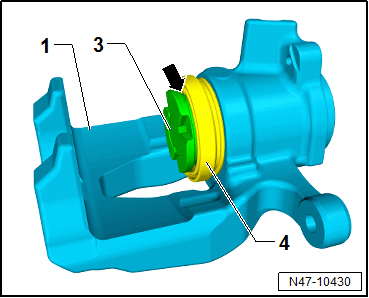

-- Carefully pry the protective cap -4- out of the groove -arrow- on the front brake caliper piston -3-.
-- Carefully pry the inner sealing lip of the protective cap -4- out of the groove -arrows- on the brake caliper -1-.
-- Remove the brake caliper piston -3-. To do so, use the Trim Removal Wedge:3409 .

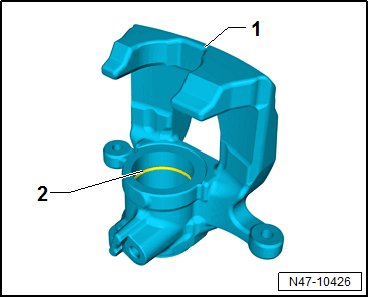

-- Pry out the seal -2- from the brake caliper -1- carefully using the Trim Removal Wedge:T10498 .
