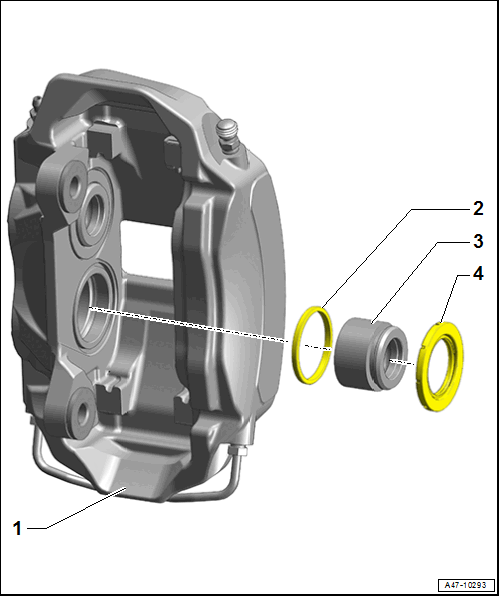

Overview - Front Brake Caliper, Four-Piston Brake
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Brake Caliper
- Seal
- If damaged, install the entire seal set
- Refer to BRAKE CALIPER PISTON, REMOVING AND INSTALLING, FOUR-PISTON BRAKE
- Brake Caliper Piston
- No replacement part
- Protective Cap
- If damaged, install the entire seal set
- Refer to BRAKE CALIPER PISTON, REMOVING AND INSTALLING, FOUR-PISTON BRAKE
- Mount the cap sealing lip on the brake caliper piston.
