Brake Caliper Piston, Removing And Installing, Four-Piston Brake: Installing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Install the entire repair kit.
- Only use mineral spirits to clean the brakes.
- When a brake caliper piston or a piston cylinder are damaged, the brake caliper must be replaced.
-- Clean the surface of the brake caliper piston only with mineral spirits and let it dry.
-- Insert the seal into the brake caliper and check for correct seating.
-- Place the protective cap -4- on the brake caliper piston -3-.
- The protective cap must sit correctly in the groove -arrow-.
-- Without tilting it, push the brake caliper piston -3- into the brake caliper -1- using constant pressure.

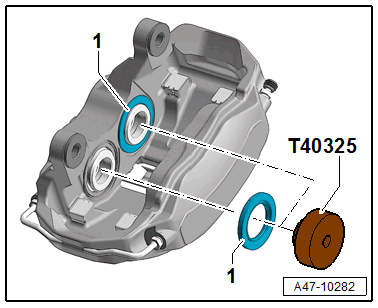

-- Insert the Piston Resetting Tool -T10145- and the Thrust Piece:T40325 into the brake caliper.
-- Slowly push the protective cap -1- in using the Piston Resetting Tool -T10145- and Thrust Piece:T40325 .
- The protective cap must fit tightly in the groove. If necessary, push down on it slightly with the Piston Resetting Tool -T10145-.
-- Repeat the work procedure on the next brake caliper piston.
