Brake System Pressure Reservoir -VX70-, REMOVING AND INSTALLING: Removing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the plenum chamber cover. Refer to PLENUM CHAMBER COVER, REMOVING AND INSTALLING .

-- Insert the Brake Pedal Actuator:V.A.G 1869/2 between the brake pedal and driver seat. Pretension the brake pedal with the Brake Pedal Actuator:V.A.G 1869/2 to at least 60 mm.

Fig 1: Identifying Brake Pedal Actuator

Courtesy of AUDI

By doing this, the valves in the brake master cylinder are closed and the brake fluid reservoir does not run empty.

-- Depending on the wheel combination, remove the wheels. Refer to WHEELS AND TIRES .

-- Remove the protective cap -3- from the bleed screw -1- on a front brake caliper.

Fig 2: Identifying Protective Cap, Bleed Screw And Container Bleeder Hose

Courtesy of AUDI

-- Connect the bleeder bottle hose -2-.

CAUTION:

Leaking brake fluid increases the risk of injury.

Risk of skin irritation and injury.

- Wear safety gloves.

-- Open the bleed screw to reduce the pressure in the brake system.

-- Close the bleed screw and remove the bleeder bottle.

-- Repeat the procedure on a rear brake caliper.

Do not remove the Brake Pedal Actuator:V.A.G 1869/2 .

-- To prevent brake fluid from escaping, place enough lint-free cloths in the area under the pressure reservoir.

Courtesy of AUDI

CAUTION:

There is a risk of contamination and paint damage from leaking brake fluid.

- Rinse off any leaking brake fluid immediately using plenty of water.

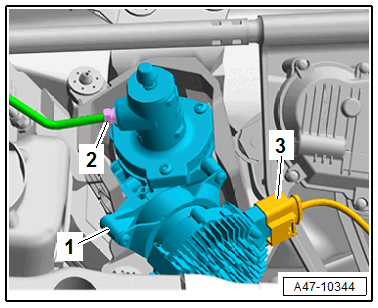

-- Remove the union bolt -2- and remove the brake line from the pressure reservoir.

-- Immediately close the open connection points with a clean plug from the Repair Kit:1H0 698 311 A or Assembly Part Kit:5Q0 698 311 .

-- Disconnect the connector -3-.

-- Pull the Brake System Pressure Reservoir -VX70- -1- upward from the retaining pins and remove it.

-- If the Brake System Pressure Reservoir -VX70- needs to be replaced, remove the bolts -arrows- and the bracket.

Courtesy of AUDI

RHD vehicles:

Courtesy of AUDI

-- To prevent brake fluid from escaping, place enough lint-free cloths in the area under the pressure reservoir.

CAUTION:

There is a risk of contamination and paint damage from leaking brake fluid.

- Rinse off any leaking brake fluid immediately using plenty of water.

-- Remove the union bolt -2- and remove the brake line from the pressure reservoir.

-- Immediately close the open connection points with a clean plug from the Repair Kit:1H0 698 311 A or Assembly Part Kit:5Q0 698 311 .

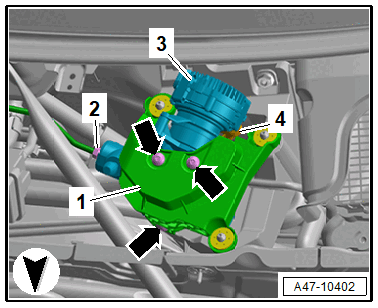

-- Disconnect the Brake System Pressure Reservoir -VX70- -item 3- from the upper retaining pin, at the same time disconnect the connector -4-.

-- If the Brake System Pressure Reservoir -VX70- needs to be replaced, remove the bolts -arrows- and the bracket -2-.
