Right And Left Rear Abs Wheel Speed Sensor -G44- / -G46-, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

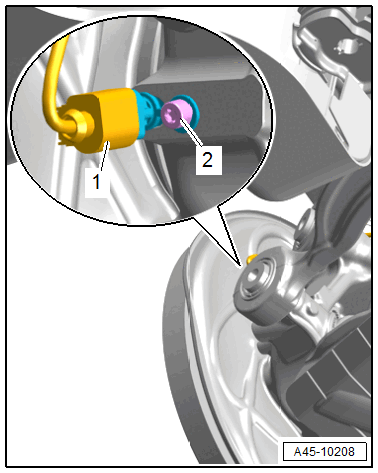

Fig 1: Identifying The ABS Wheel Speed Sensor Connector

Courtesy of AUDI

-- Disconnect the connector -1-.

-- Remove the bolt -2- and remove the speed sensor from the wheel bearing housing. (shown on an AWD vehicle).
