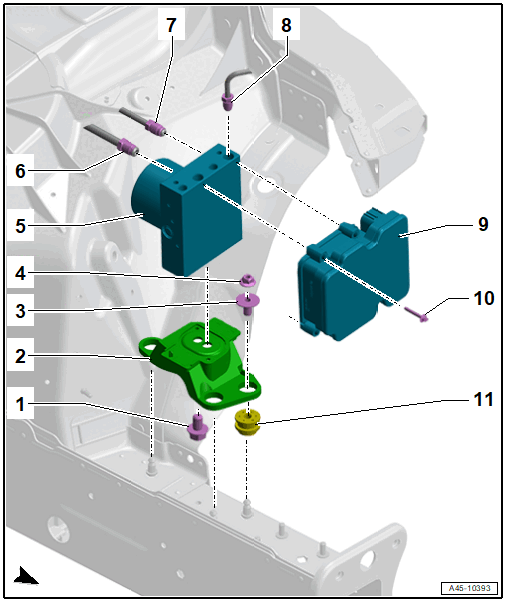

Control Module and Hydraulic Unit; vehicle with vacuum brake booster is shown
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Bolt
- 25 Nm
- Mounting Bracket
- Spacer Sleeve
- Nut
- 8 Nm
- ABS Hydraulic Unit -N55-
- If the ABS Control Module -J104- is faulty, it can be replaced separately.
- If the ABS Hydraulic Unit -N55- is faulty, it must be replaced together with the ABS Control Module -J104-.
- Brake Line
- 16 Nm
- Replace a damaged or bent brake line
- From brake master cylinder to the hydraulic unit
- Do not change the bending shape.
- Brake Line
- 16 Nm
- Replace a damaged or bent brake line
- From brake master cylinder to the hydraulic unit
- Do not change the bending shape.
- Brake Line
- 14 Nm
- Replace a damaged or bent brake line
- To the brake caliper
- Do not change the bending shape.
- ABS Control Module -J104-
- If the ABS Control Module -J104- is faulty, it can be replaced separately.
- If the ABS Hydraulic Unit -N55- is faulty, it must be replaced together with the ABS Control Module -J104-.
- Refer to ABS Control Module -J104- /ABS Hydraulic Unit -N55-, REMOVING AND INSTALLING
- Can be replaced separately if faulty.
- Refer to CONTROL MODULE, SEPARATING FROM HYDRAULIC UNIT
- Refer to CONTROL MODULE, INSTALLING ON HYDRAULIC UNIT
- Bolt
- Tighten in two steps alternating from side to side.
- 1. Step: 1 to 1.5 Nm (to position the seal)
- 2. Step: 2.5 Nm
- Rubber Bushing
- Quantity: 3
