Coolant Pump, Removing And Installing: Removing

WARNING: This page is about a different car, the 2022 Audi Q8, 2021 Audi Q8, 2020 Audi Q8, and 2019 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the coolant pipes. Refer to COOLANT PIPES, REMOVING AND INSTALLING :

Front Coolant Pipe
Left Front Coolant Pipe

-- Remove the vacuum hose -arrow- at the same time to not damage it.

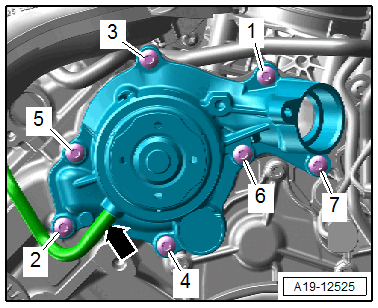

Fig 1: Coolant Pump - Tightening Specifications and Sequence

-- Remove the bolts -1 to 7- and remove the coolant pump.
