Special Tools

Special tools and workshop equipment required

• Wrench - Fuel Sending Unit: T10202
  Fig 1: Identifying Wrench - Fuel Sending Unit

  Courtesy of AUDI OF AMERICA, LLC
• Gearbox Support: T40173
  Fig 2: Gearbox Support T140173

  Courtesy of AUDI OF AMERICA, LLC
• Analog/Digital Multimeter : FLU83III
  Fig 3: Analog/Digital Multimeter FLU83III

  Courtesy of AUDI OF AMERICA, LLC
• Connector Test Set: VAG1594D
  Fig 4: Connector Test Set VAG1594D

  Courtesy of AUDI OF AMERICA, LLC
• Fuel Extraction Device: VAS5190A
  Fig 5: Fuel Extraction Device VAS5190A

  Courtesy of AUDI OF AMERICA, LLC
• Fuel Extraction - Adapter 2: VAS5190/2
  Fig 6: Identifying Fuel Extraction Adapter

  Courtesy of AUDI OF AMERICA, LLC
• Pressure Tester Kit: VAS6550  with Pressure Tester Kit - Hose 2: VAS6550/2
  Fig 7: Identifying Pressure Tester Kit VAS 6550

  Courtesy of AUDI OF AMERICA, LLC
• Pressure Regulator Valve: VAS6550/4
  Fig 8: Identifying Pressure Regulator Valve VAS 6550/4

  Courtesy of AUDI OF AMERICA, LLC
• Engine and Gearbox Jack: VAS6931
  Fig 9: Engine and Gearbox Jack VAS6931 or VAG1383A

  Courtesy of AUDI OF AMERICA, LLC

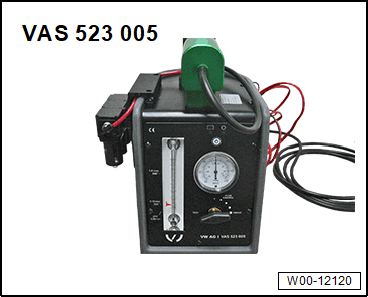

• Smoke Tester: VAS523005

  Courtesy of AUDI OF AMERICA, LLC

• Connector: VAS523005/4

  Courtesy of AUDI OF AMERICA, LLC

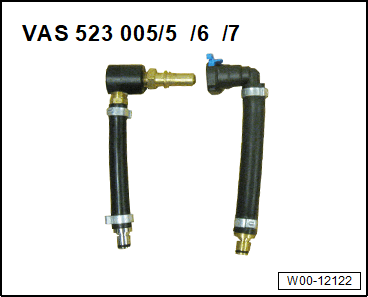

• Connection Set: VAS523005/5  , : VAS523005/6  or : VAS523005/7  (depending on the diameter of the breather line)

  Courtesy of AUDI OF AMERICA, LLC

• Plugs: VAS523005/8

  Courtesy of AUDI OF AMERICA, LLC

• Protective eyewear (yellow)
• Smoke Tester: VAS523005  operating instructions
• Vehicle Diagnostic Tester
• Safety Gloves
