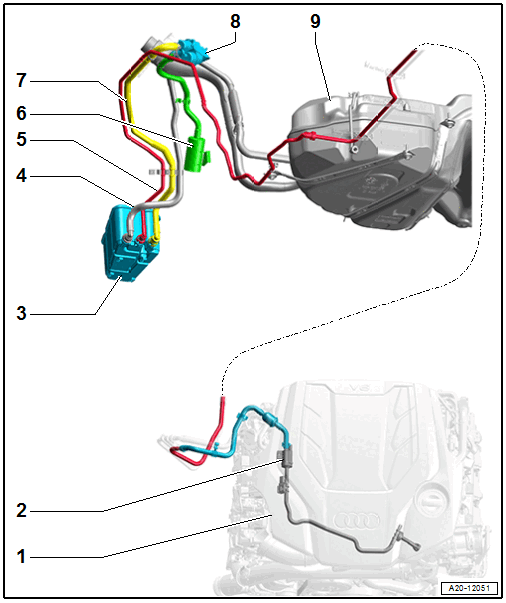

Connection Diagram - EVAP System, China Market Versions, AUDI Q8

• The connection diagram applies to TFSI vehicles.
• The lines on the vehicle are not colored.

Courtesy of AUDI OF AMERICA, LLC

1. Engine
2. EVAP Canister Purge Regulator Valve 1 -N80-
3. EVAP Canister
4. Bleeder Line
   • From the fuel tank
5. Bleeder Line
   • To the EVAP Canister Purge Regulator Valve 1 -N80-
6. Vent Line with Filter
7. Bleeder Line
   • With Fuel Tank Leak Detection Module - GX36-
8. Fuel Tank Leak Detection Module - GX36-
9. Fuel Tank
