OVERVIEW - Battery, 48 V -A6-

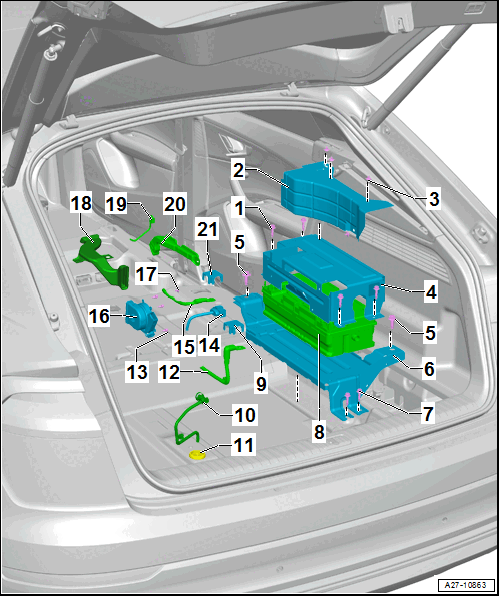

Fig 1: Exploded View Of Battery, 48 V -A6-

Courtesy of AUDI OF AMERICA, LLC

Bolt
- 20 Nm
- Quantity: 4
Air Duct Protective Housing
Expanding Rivets
- Quantity: 4
Protective Housing
- Removing and installing. Refer to Battery, 48 V -A6-, REMOVING AND INSTALLING .
Bolt
- 70 Nm
- Quantity: 2
Battery Mount
- Removing and installing. Refer to Battery, 48 V -A6- MOUNT, REMOVING AND INSTALLING, 48 VOLT SYSTEM .
Bolt
- 20 Nm
- Quantity: 2
Battery, 48 V -A6-
- Removing and installing. Refer to Battery, 48 V -A6-, REMOVING AND INSTALLING .
Positive Cable Cap
Pressure Equalization Hose
Grommet
Positive Cable
- 20 Nm
- Terminal 40
Rubber Bushing
- Quantity: 3
Connector
Ground Cable
- 20 Nm
- Terminal 41
- De-energizing. Refer to 48V SYSTEM, DE-ENERGIZING .
Battery Fan 1 -V457-
- Equipment versions with battery cooling - VH3
- Removing and installing. Refer to BATTERY FANS -V457-, REMOVING AND INSTALLING .
Expanding Rivets
- Equipment versions with battery cooling - VH3
Front Air Duct
- Equipment versions with battery cooling - VH3
Connector
- Equipment versions with battery cooling - VH3
Rear Air Duct
- Equipment versions with battery cooling - VH3
Ground Cable Cap
