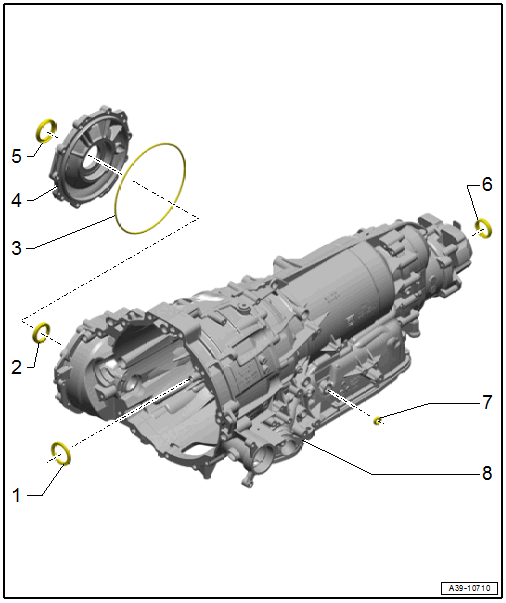

Component Location Overview - Seals
- Seal
- For the torque converter
- Replacing. Refer to TORQUE CONVERTER, REMOVING AND INSTALLING .
- Left Seal
- For the flange shaft
- Replacing. Refer to LEFT SEAL, REPLACING .
- O-Ring
- On the front final drive cover
- Replacing. Refer to O-RING ON FRONT FINAL DRIVE COVER, REMOVING AND INSTALLING .
- Front Final Drive Cover
- Removing and Installing. Refer to O-RING ON FRONT FINAL DRIVE COVER, REMOVING AND INSTALLING .
- Right Seal
- For the flange shaft
- Replacing. Refer to RIGHT SEAL, REPLACING .
- Seal
- For the transmission output shaft.
- Replacing. Refer to TRANSMISSION OUTPUT SHAFT SEAL, REPLACING
- Seal
- For the parking lock emergency release shaft
- Replacing. Refer to SELECTOR SHAFT SEAL, REPLACING .
- Transmission
