Radiator Cooler, Removing And Installing: Removing

-- Remove the rear noise insulation. Refer to NOISE INSULATION .

-- Place the Used Oil Collection and Extraction Unit:SMN372500  under the transmission.

-- If present, remove the right coolant pipe on the transmission. Refer to COOLANT PIPES, REMOVING AND INSTALLING .

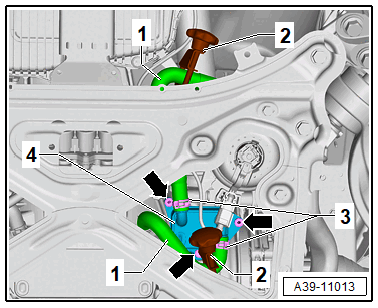

-- Clamp the coolant hose with the Hose Clamps - Up To 25mm:3094  -2-.

Courtesy of AUDI

-- Loosen the hose clamps -3- and remove the coolant hoses -1-.

-- Remove bolt -arrows-, remove front final drive cooler -4-.
