Brake Rotor, Removing And Installing: Installing
Install in reverse order of removal and note the following:
TIP:
- Clean bolts before reusing.
- Replace damaged bolts.
- Always replace self-locking bolts.
-- Check the brake rotors for wear and damage before reusing them:
- Brake rotor wear limit. Refer to TECHNICAL DATA .
- Always replace brake rotors on both sides of the axle.
- Brake pads likewise must be replaced on both sides of the axle.
-- Thoroughly clean the brake rotor and hub contact surfaces and clear them of corrosion.
-- Do not tilt the brake rotor when mounting it on the wheel hub.

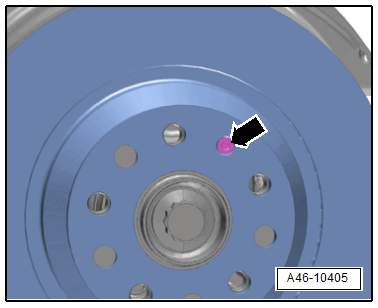

-- Tighten the bolt -arrow-.
-- Install the brake caliper. Refer to BRAKE CALIPER, REMOVING AND INSTALLING .
CAUTION:
Faulty brakes increase the risk of an accident.
- Make sure the brakes are working correctly before driving the vehicle for the first time.
-- With the vehicle stationary, firmly press the brake pedal several times so that the brake pads in the operating condition properly sit in their respective position.
