Brake Carrier, Removing And Installing: Removing

-- Remove the brake pads. Refer to BRAKE PADS, REMOVING AND INSTALLING .

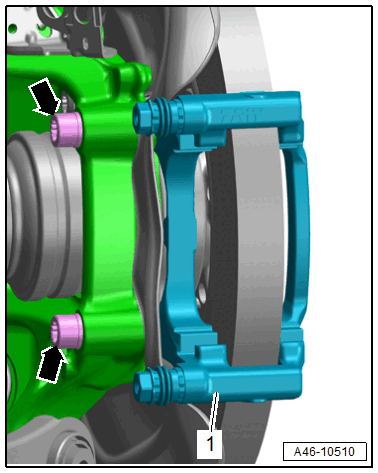

-- Remove the bolts -arrows- and remove the brake carrier -1-.

Courtesy of AUDI OF AMERICA, LLC
