Brake Pad Wear Indicator Wire, Removing And Installing: Removing
-- Remove the front wheel. Refer to WHEEL, CHANGING .
-- Disconnect the connector -1-.
-- Release the connector -2- from its bracket in direction of -arrow A- while turning it 90° at the same time in direction of -arrow B-.

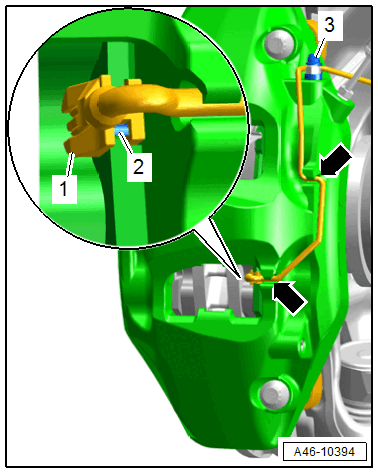

-- Free up the wire, to do so open the protective cap -3- and disengage the wires from the brake caliper -arrows-.
-- Remove the contact -1- for the brake pad wear indicator from the brake pad. Pay attention to the clip -2- while doing so.
NOTE:
If the clip go missing, the brake pad wear indicator wire must be replaced. Refer to the Parts Information
