Mounting Bracket, Removing And Installing: Removing

-- Remove the plenum chamber cover. Refer to PLENUM CHAMBER COVER, REMOVING AND INSTALLING .

-- Disconnect the brake pedal from the brake booster. Refer to BRAKE PEDAL, DISCONNECTING FROM BRAKE BOOSTER .

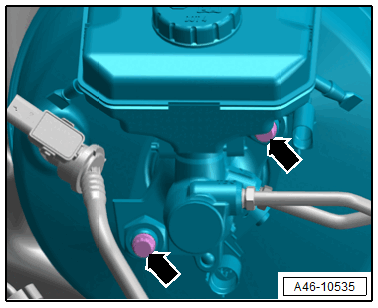

-- Remove the bolts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -3- and free up the wire.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the nuts -1-.

-- Remove the screw -2-.

-- Remove the mounting bracket with the brake pedal and accelerator pedal module installed.

-- Remove the brake pedal. Refer to BRAKE PEDAL, REMOVING AND INSTALLING .

-- Remove the accelerator pedal module. Refer to OVERVIEW - ACCELERATOR PEDAL MODULE .
