Mounting Bracket, Removing And Installing: Installing
Install in reverse order of removal and note the following:
-- Install the accelerator pedal module. Refer to OVERVIEW - ACCELERATOR PEDAL MODULE .
-- Install the brake pedal. Refer to BRAKE PEDAL, REMOVING AND INSTALLING .
-- Bring the mounting bracket with the installed brake pedal and accelerator pedal module into the installation position.
- The mounting bracket must be seated in the bulkhead guides and all stud bolts.

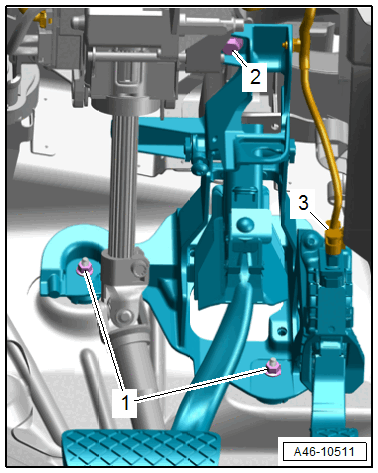

-- Tighten the mounting bracket -1 and 2-.
Refer to OVERVIEW - BRAKE PEDAL
-- Connect the brake pedal to the brake booster. Refer to BRAKE PEDAL, DISCONNECTING FROM BRAKE BOOSTER .
Faulty brakes increase the risk of an accident.
- Make sure the brakes are working correctly before driving the vehicle for the first time.
-- Install the plenum chamber cover. Refer to PLENUM CHAMBER COVER, REMOVING AND INSTALLING .
