Check Valve With Vacuum Hose In Engine Compartment, Removing And Installing, 3.0L TDI Engine: Removing
-- Remove the air filter housing. Refer to the appropriate Service Information .
-- Remove the left engine cover. Refer to the appropriate Service Information .
-- Remove the A/C compressor bracket. Refer to the appropriate Service Information .

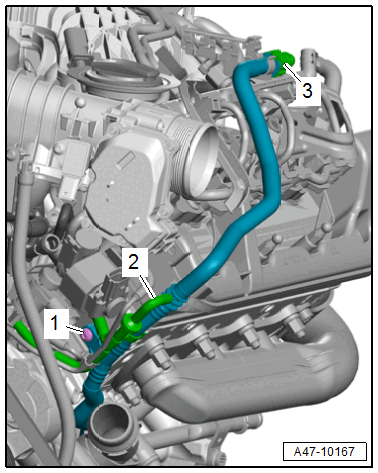

-- Remove the vacuum hose -2-.
-- Remove the screw -1-.
-- If equipped, disconnect the vacuum hose -3- by pressing the release buttons on both sides.

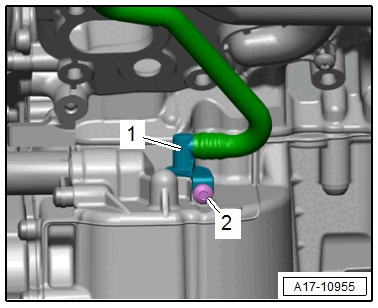

-- Remove the bolt -2- and remove the vacuum hose -1- with the check valve.
