Overview - Window Regulator

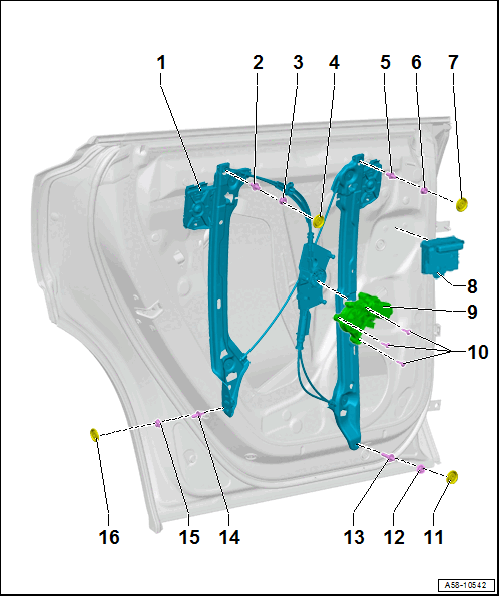

Fig 1: Exploded View Of Rear Window Regulator

Courtesy of AUDI OF AMERICA, LLC

Window Regulator
- Removing and installing. Refer to WINDOW REGULATOR, REMOVING AND INSTALLING .
Adjusting Mechanism
- Upper
- For the side adjustment
Nut
- 9 Nm
Plugs
Adjusting Mechanism
- Upper
- For the side adjustment
Nut
- 9 Nm
Plugs
Door Control Module
- Rear
  - Left Rear Door Control Module -J388-, Right Rear Door Control Module -J389-
- Removing and installing. Refer to Left Rear Door Control Module -J388- AND Right Rear Door Control Module -J389-, REMOVING AND INSTALLING .
Window Regulator Motor
- Driver Side Rear Window Regulator Motor -V471-, Passenger Side Rear Window Regulator Motor -V472-
- Removing and installing. Refer to WINDOW REGULATOR MOTOR, REMOVING AND INSTALLING .
Bolt
- 3.5 Nm
- Quantity: 3
- Thread cutting
- Position and install by hand
Plugs
Nut
- 9 Nm
Adjusting Mechanism
- Lower
- For the side adjustment
Adjusting Mechanism
- Lower
- For the side adjustment
Nut
- 9 Nm
Plugs
