Outer Window Shaft Strip, Removing And Installing: Removing

-- Move the door window into the "open" position.

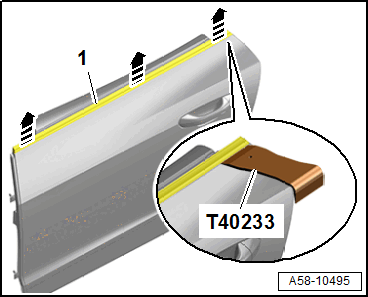

-- Carefully remove the window shaft strip -1- using the : T40233  carefully upward from the door flange in direction of -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the window shaft strip.
