Mounting Bracket, Removing And Installing: Removing

-- Remove the window regulator. Refer to WINDOW REGULATOR, REMOVING AND INSTALLING .

-- Remove the door handle. Refer to DOOR HANDLE, REMOVING AND INSTALLING .

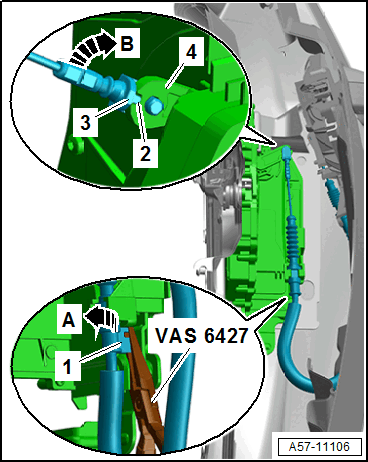

-- Use the : VAS6427  to turn the operating cable on the lever -1- 90° in the direction of -arrow A-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the operating cable from the cable bracket.

-- Turn the operating cable on the operating lever -4- in the direction of -arrow B-.

• The tab -3- on the operating cable must align with the recess -2- on the operating lever -4-.

-- Disengage the operating cable from the operating lever -4-.

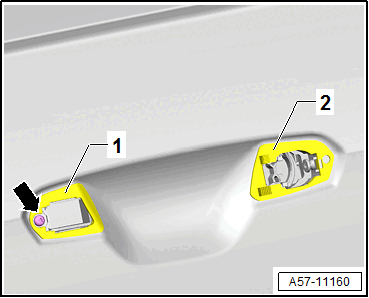

-- Remove the bolt -arrow-.

Courtesy of AUDI OF AMERICA, LLC

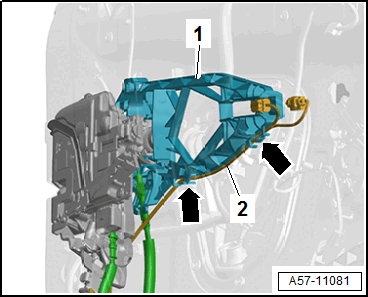

-- Free up the wiring harness -2- -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Disengage the mounting bracket -1- toward the rear and guide out toward the opening for the door inner cover, while paying attention to the operating cable.
