Inner Window Shaft Strip, Removing And Installing: Removing

-- Remove the rear door trim panel. Refer to REAR DOOR TRIM PANEL, REMOVING AND INSTALLING .

-- If equipped, remove the door window sun shade. Refer to the appropriate Service Information .

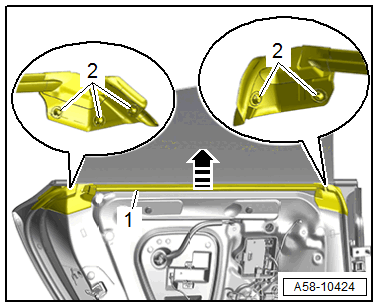

-- Remove the retaining studs -2- on the inner window shaft strip sealing piece from the inner door panel.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the inner window shaft strip -1- upward in direction of -arrow-.
