Inner Window Shaft Strip, Removing And Installing: Installing

Install in reverse order of removal and note the following:

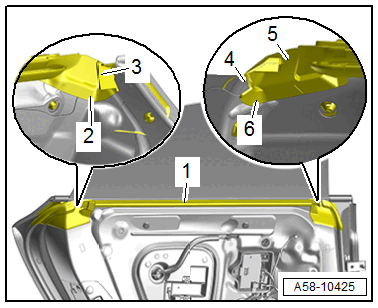

-- Attach the sealing pieces -3 and 5- onto the door -4- by engaging the guides -2 and 6- in the mounts on the door shell and pressing the retainers on completely.

Courtesy of AUDI OF AMERICA, LLC

-- Press on the window shaft strip -1-.
